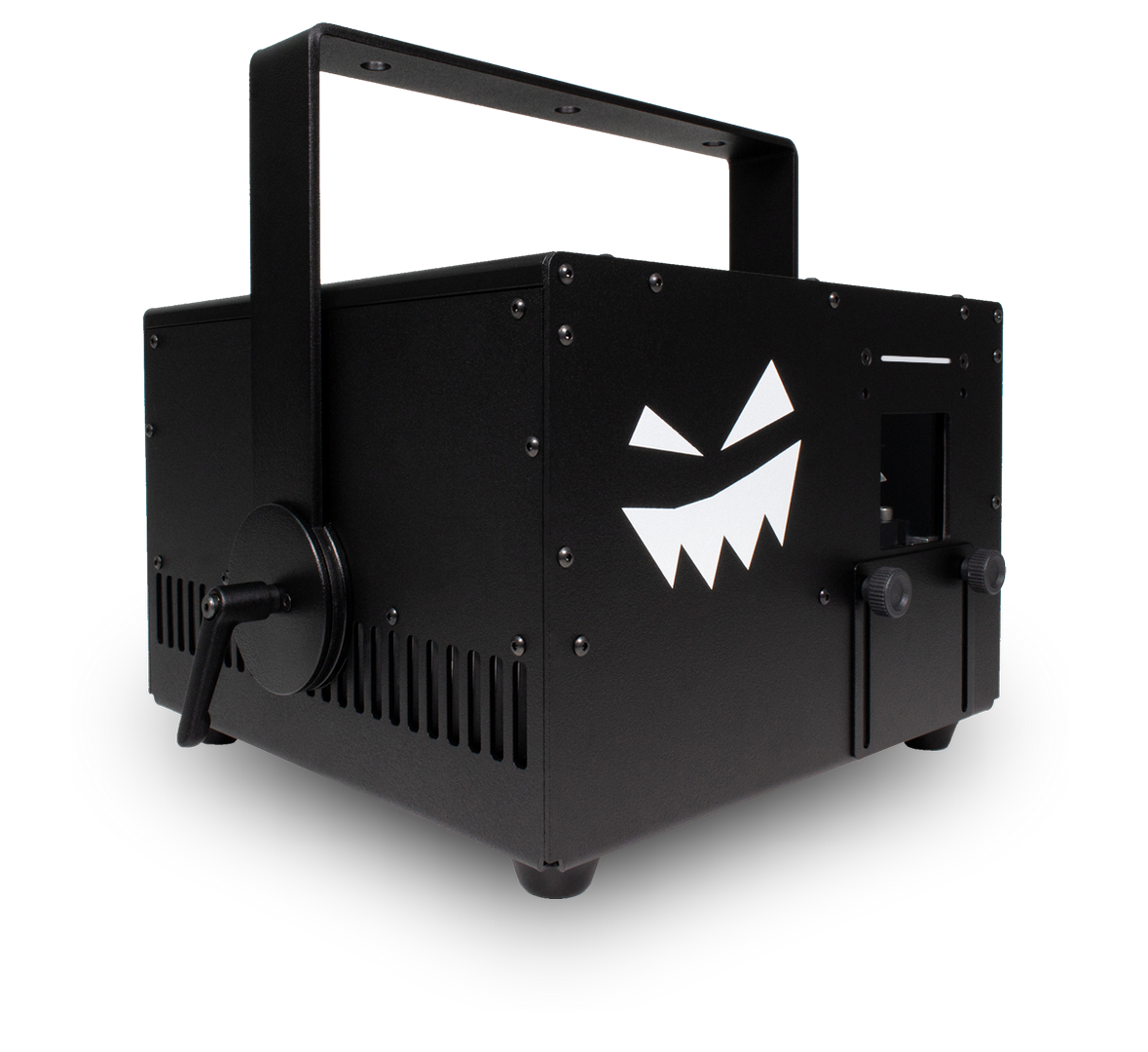

This is the new
KORE
Built from the ground up.

We started from scratch and made it more. More.
More safe.[sic]
More exact.
More portable.
More local.
More flexible.
More compatible.
More economical.
More safe.[sic]

The new KORE comes with a whole range of safety features, making it the safest to use KORE ever.
The KORE Advanced Interlock System is one of a kind.

KORE are EN 60825-1 and ÖNORM S 1105 compliant.
More exact.

Cylindrical lenses. This should say it all.
  • Lower Beam Divergence due to Cylindrical Lenses
  • High Efficiency Mirrors and Dichroic Filters
  • Custom Designed Stable Optic Holders.
More portable.

Stability doesn’t come with weight. It comes with ingenuity of design.
  • Small and Lightweight
  • Approx. 8kg only
  • Dust Resistant
  • Separated Cooling Compartment
  • Temperature Controlled Silent Fans
  • Incl. Fan Stop
  • Fall-Proven Safety Eye
  • Easy to Maintain Design
More local.

KORE are developed and manufactured in Austria - European Union. We source all components from as near as possible.
  • EyeMagic Scanners only (Greece)
  • EMS-6000 by Default
  • EMS-8000 (Optional) with Digital Drivers
More flexible.

Choose between different power classes, different scanners, different control options.
  • ILDA Version (by Default)
  • Controls for Color Intensity and Output Size
  • FB4 MAX Version (Optional)
  • Network, ILDA, DMX, ArtNet, Timecode, StandAlone Control
  • 5W power class or 10W power class
  • 35kpps or 60kpps (8° ILDA)
More compatible.

The new KORE is compatible with a wide range of accessories.
More economical.

The new KORE comes to stay. Easy to use - easy to maintain.
  • Developed and manufactured in Vienna (Austria)
  • Guaranteed availability of spare parts
  • Tested under extreme conditions
  • Easy to access electronics
  • Modular design with self-explaining cabling
Specification
Models:
KORE 5
KORE 10
KORE 15
Wavelength/
Power:
1400mW 638nm
1600mW 525nm
2200mW 445nm
2000mW 638nm
3200mW 525nm
4400mW 445nm
3000mW 638nm
4500mW 525nm
8000mW 455nm
Divergence/
Beam Size:
< 0.6 mrad (half angle, 1/e²)
4.5 x 2.2 mm (FWHM)
< 0.7 mrad (half angle, 1/e²)
4.5 x 4.5 mm (FWHM)
< 0.6 mrad (half angle, 1/e²)
4.5 x 4.5 mm (FWHM)
Light Sources:
2x Sharp Diodes
1x Nichia Diode
1x Osram Diode
2x Ushio Diodes
2x Nichia Diodes
2x Osram Diodes
3x Ushio Diodes
3x Nichia Diodes
2x Nichia Diodes
Power Consumption:
200W
(all lasers 100%,
full scanner load)
250W
(all lasers 100%,
full scanner load)
350W
(all lasers 100%,
full scanner load)
(520W with heater)
Electronics:
ColorDRIVE Influenced Custom Drivers
Proprietary Digital Scanfail Safety
Continuous Temperature Monitoring
Laser Emission LED Strip for Perfect Visibility
Temperature Controlled Laser Module
Heating Capabilities for extra low Temperatures (KORE 15 only)
LED Indicator for Over/Under Temperature
Safety:
New Developed Scanfail Safety
Housing Interlock
Safety-Eye
Precision Bracket Fastening System
Masking Plates (up to 3-Way)
Safety Key Switch
Laser Emission LED Strip for Perfect Visibility
EN 60825-1 and ÖNORM S 1105 compliant
Control:
ILDA
Version

R, G, B Intensity Knobs
X/Y Invert Switches
Fully Complies to ILDA Standard
ILDA Daisy-Chaining
FB4 MAX
Version

Network Control
ILDA Control
DMX Control
ArtNet Control
Timecode Control
StandAlone Control
SD Card
Geometric Correction
Color Adjustment
Scanning:
EMS-6000
35kpps (8° ILDA)
Analogue Amps
EMS-8000 (optional)
60kpps (8° ILDA)
Digital Amps
F-Theta & Pincushion Correction
All scanners are made by EyeMagic in Greece, European Union.
Optics:
Low Beam Divergence due to Cylindrical Lenses
Beam Profile Consistent Across all Color Sources
High Efficiency Mirrors and Dichroic Filters
Custom Designed Stable Optic Holders
Mechanics:
Dust Resistant Design
Separated Cooling Compartment
Temperature Controlled Silent Fans
Incl. Fan Stop
Fall-Proven Safety-Eye
Easy to Maintain Design
Operation Temperature:
5°C - 40°C
(KORE 5-15 Standard Version, non condensing)
-10°C - 40°C
(KORE 15 with Heating Capabilities, non condensing)
Dimensions/
Weight:
305 x 335 x 270mm
(L x W x H)
incl. Handles, Bracket, Safety-Eye, Masking Plates

8.5 - 9kg
Depends on Version
Included Accessories:
Neutrik Powercon to Type F (Schuko) Cable
Available Accessories:
Downloads:
Images
Buy
Contact us for your personal quote:
+43 (0) 1 944 2883
We are happy to assist you in choosing the right configuration for your application.
Accessories
KORE Accessories

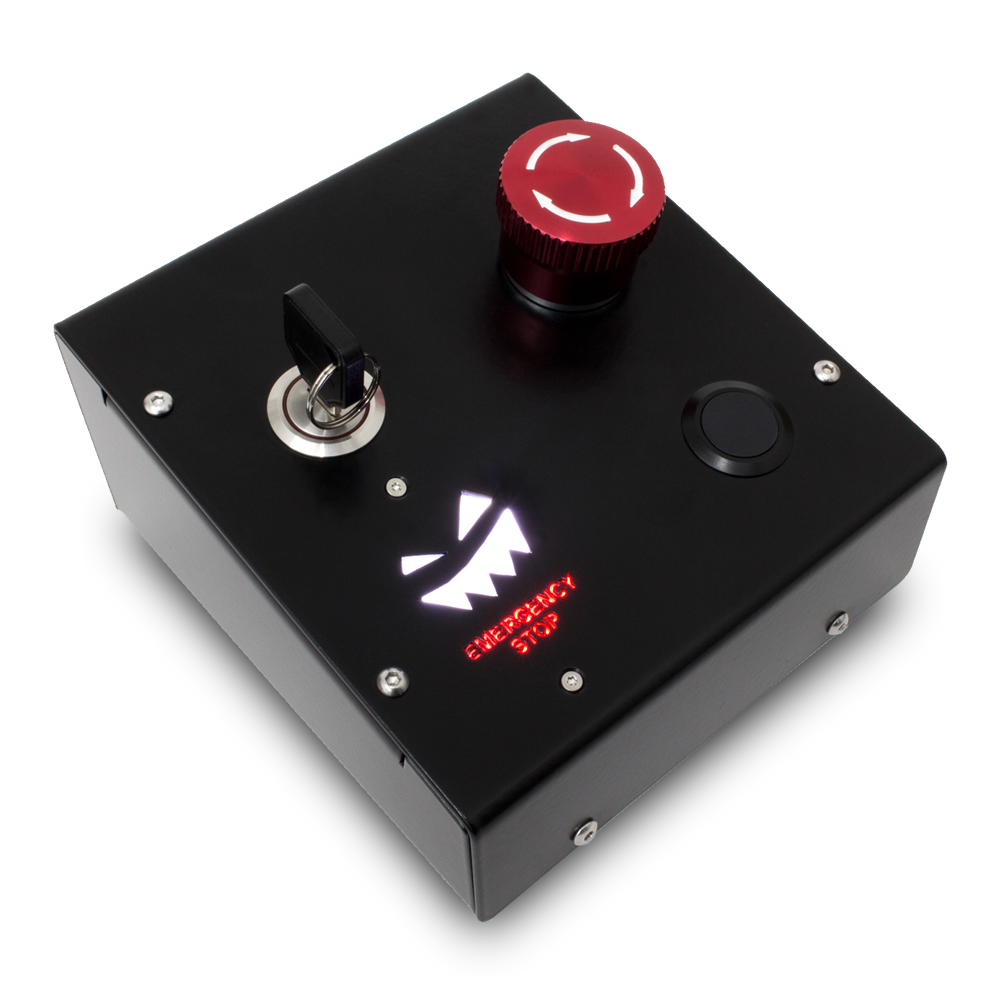

Emergency Stop Box for any KORE laser system. Compatible to the Advanced Interlock System (AIS).
200,00 €(MwSt. excl.)
Add
KORE Accessories
Advanced Interlock System Bridging Adapter for KORE usage without emergency stop box.
20,00 €(MwSt. excl.)
Add
KORE Accessories
Rain Cover custom designed to fit any KORE laser system.
150,00 €(MwSt. excl.)
Add
KORE Accessories
Additional masking plates for up to 3-way output masking of a KORE laser projector.
35,00 €(MwSt. excl.)
Add
KORE Accessories
Custom flightcase for any KORE laser projector incl. accessories.
220,00 €(MwSt. excl.)
Add
KORE Accessories

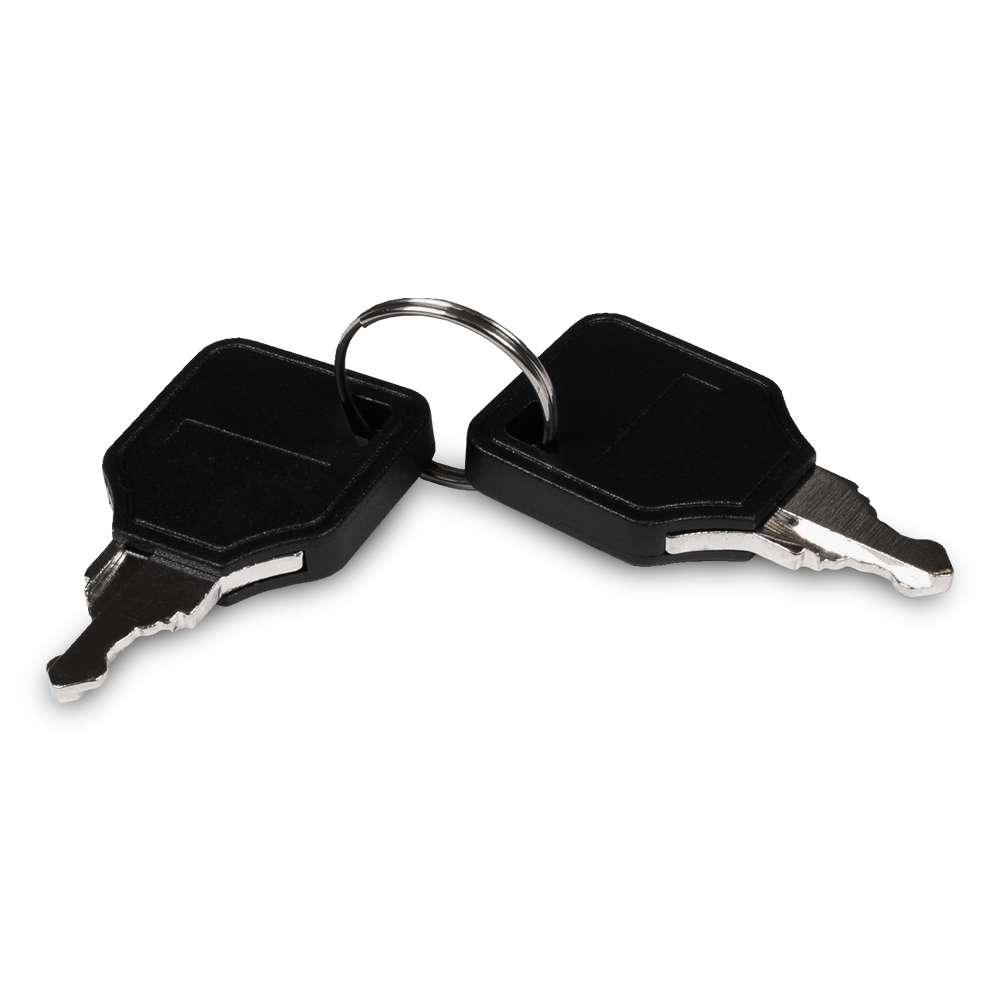

Spare key for safety switch on any KORE laser projector.
20,00 €(MwSt. excl.)
Add
KORE Accessories
Spare key for KORE AIS Emergency Stop Box.
20,00 €(MwSt. excl.)
Add
