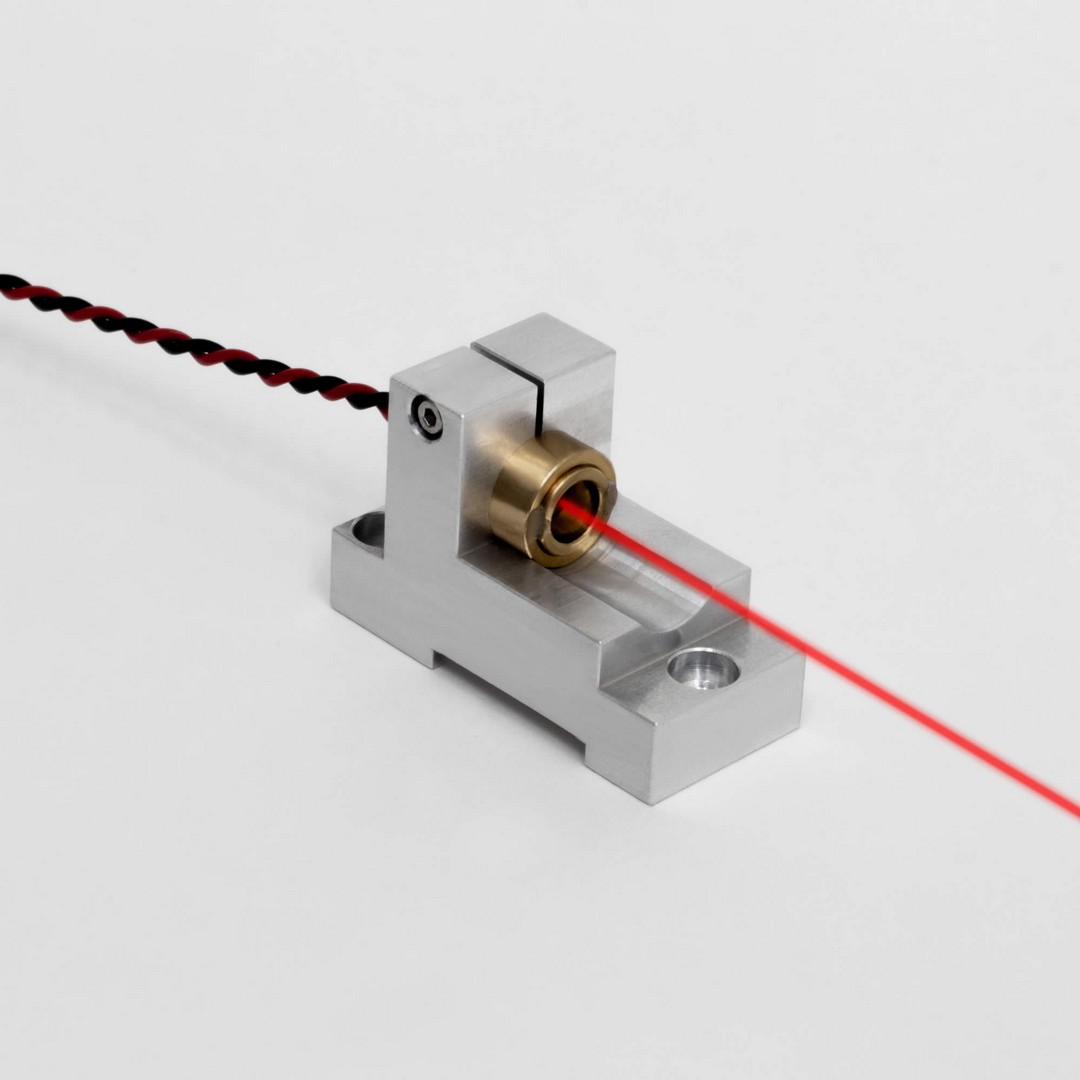

Sparrow Module 600-700nm
For test purposes, small laser projectors or static beams: Sparrow modules can be used with or without TEC.

We offer a range of different diodes and focal lengths that can be selected for various applications.

Due to the construction design, it is possible to rotate the diodes even if it is already collimated (f.e. for combining two diodes using a polarized beam splitter).

If you are looking for a very specific wavelength, feel free to contact us.
Specification
Type
Diode module
Mode
Single-mode/
Multi-mode
Dimensions
44x20x29mm
Beam output height (with TEC)
18.5mm
Beam output height (without TEC)
17.5mm
Mounting screws
3x M3
NTC mounting hole diameter
2mm
Downloads
Specification HL63163DG 633nm 100mW (pdf)
Specification HL63153AT 638nm 150mW (pdf)
Specification HL63133DG 638nm 170mW (pdf)
Specification GH0631IA2GC 638nm 185mW (pdf)
Specification HL63263DG 638nm 200mW (pdf)
Specification HL63193MG 638nm 700mW (pdf)
Specification HL63283HD 638nm 1200mW (pdf)
Specification HL6385DG 642nm 150mW (pdf)
Specification ML101U29 658nm 150mW (pdf)
Focal Length Options
Article in Shop
Laser Modules
Collimated laser diode with mounting block.
509,00 €(MwSt. excl.)
Add
Compatible Accessories
Components
Peltier Element suitable for Mini Module series.
25,00 €(MwSt. excl.)
Add
Diode/TEC Drivers
High performance diode driver with integrated TEC driver.
339,00 €(MwSt. excl.)
Add
